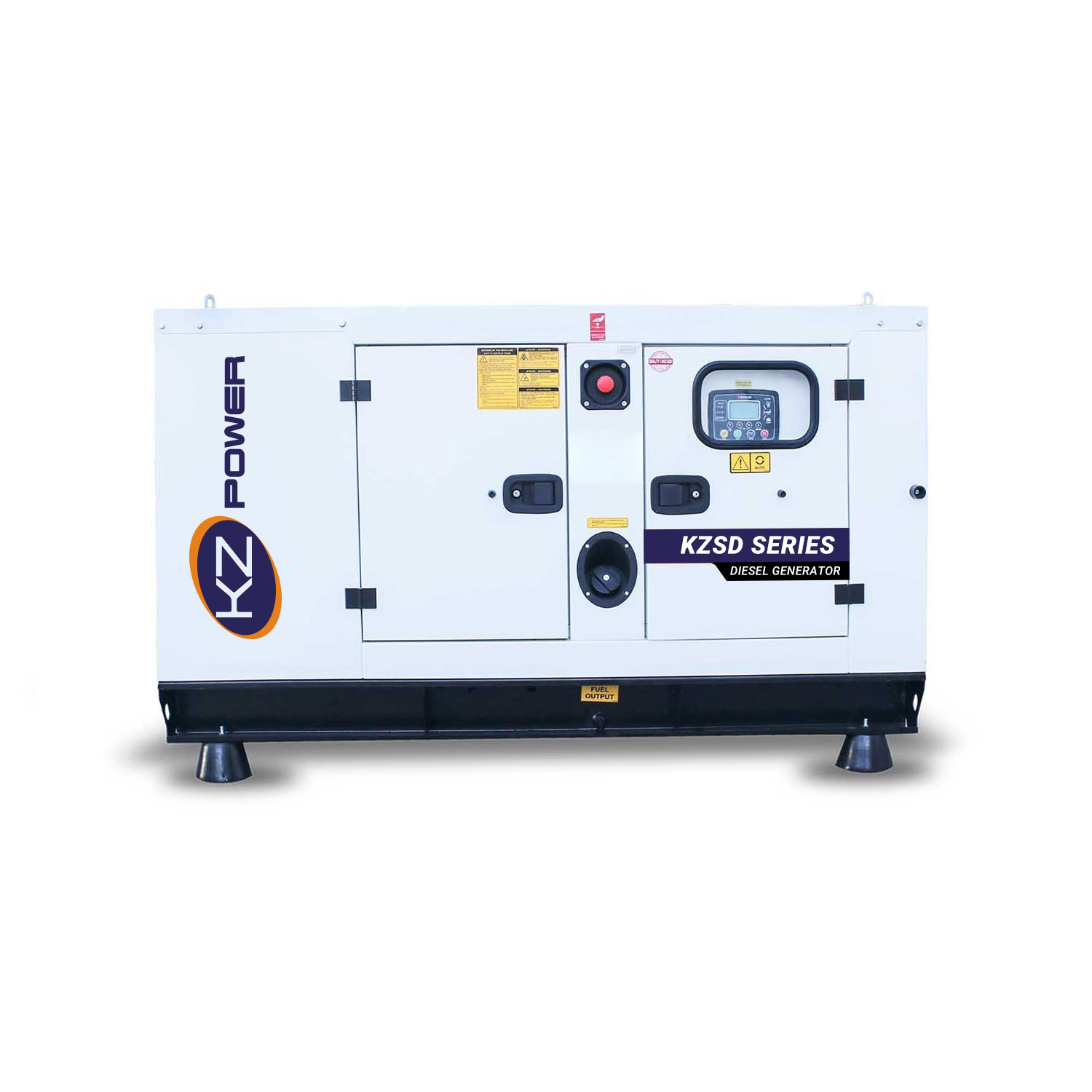

KZSD-G660

DIESEL GENERATOR SET

50 Hz - 1500 rpm

KZSD-G660

Datasheet

Category: Brand:

Standby kVA 635
Standby kW 508
Prime kVA 577,2
Prime kW 461,7
Rated Speed r.p.m 1500
Power Factor Cos Phi 0,8
Brand   SD Diesel Engine
Model   SD27G755TLD
Engine Type   4 Stroke – Diesel
Injection Type   Direct Injection
Aspiration Type   Naturally Aspirated
Number of cylinders and arrangement   12 – V
Bore&Stroke mm 135×155
Displacement L 26,6
Cooling System   Water Cooling
Compression Ratio   16:01
Fuel Consumption Standby l/h 148,7
Fuel Consumption 100% PRP l/h 135,2
Fuel Consumption 75 % PRP l/h 101,4
Fuel Consumption 50 % PRP l/h 76,1
Total oil capacity including tubes,filters L 48
Total coolant capacity L 151
Governor  Type Electronic



Manufacturer   Gentech / Leroy Somer / Stamford
LxWxH mm 4150x1900x2600
Weight kg 4870
Fuel Tank lt 1300
LxWxH mm 4500x1900x2550
Weight kg 5670
Fuel Tank lt 1300
Stand By

660

Prime Power

600
