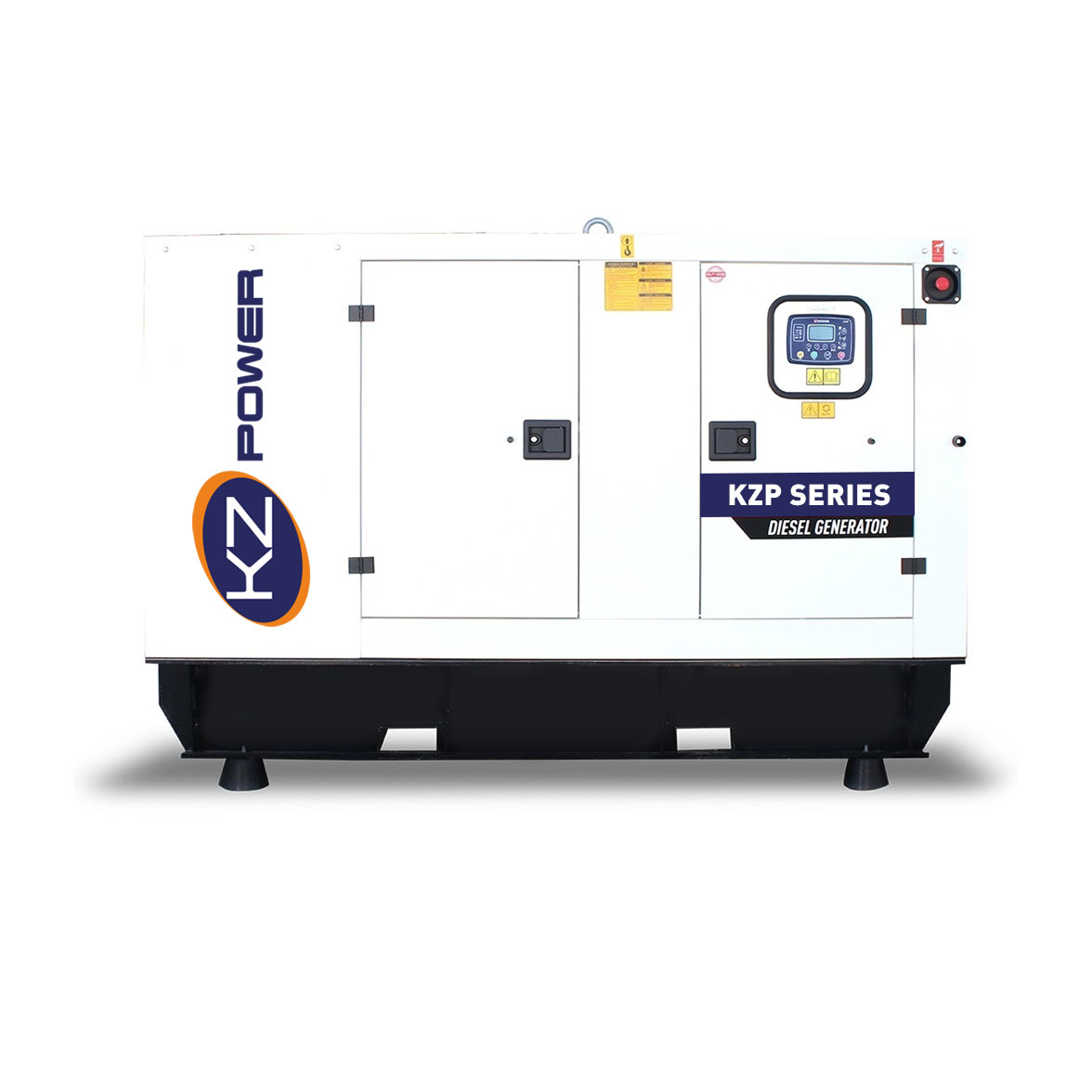

KZP-G88

DIESEL GENERATOR SET

50 Hz - 1500 rpm

KZP-G88

Datasheet

Category: Brand:

Standby kVA 88
Standby kW 70,4
Prime kVA 80
Prime kW 64
Rated Speed r.p.m 1500
Power Factor Cos Phi 0,8
Brand   PERKINS
Model   1104A-44TG2
Engine Type   4 Stroke – Diesel
Injection Type   Direct Injection
Aspiration Type   Turbo Charge
Number of cylinders and arrangement   4 In line
Bore&Stroke mm 105 x 127
Displacement L 4,4
Cooling System   Water Cooled
Compression Ratio   17.25:1
Fuel Consumption Standby l/h 16,5
Fuel Consumption 100% PRP l/h 14,8
Fuel Consumption 75 % PRP l/h 11,2
Fuel Consumption 50 % PRP l/h 8
Total oil capacity including tubes,filters   <0,15%
Total coolant capacity L 8
Governor  Type Electronic
Manufacturer   Gentech / Leroy Somer / Stamford
LxWxH mm 2200x1000x1610
Weight kg 1200
Fuel Tank lt 300
LxWxH mm 2750x1100x1860
Weight kg 1410
Fuel Tank lt 300
