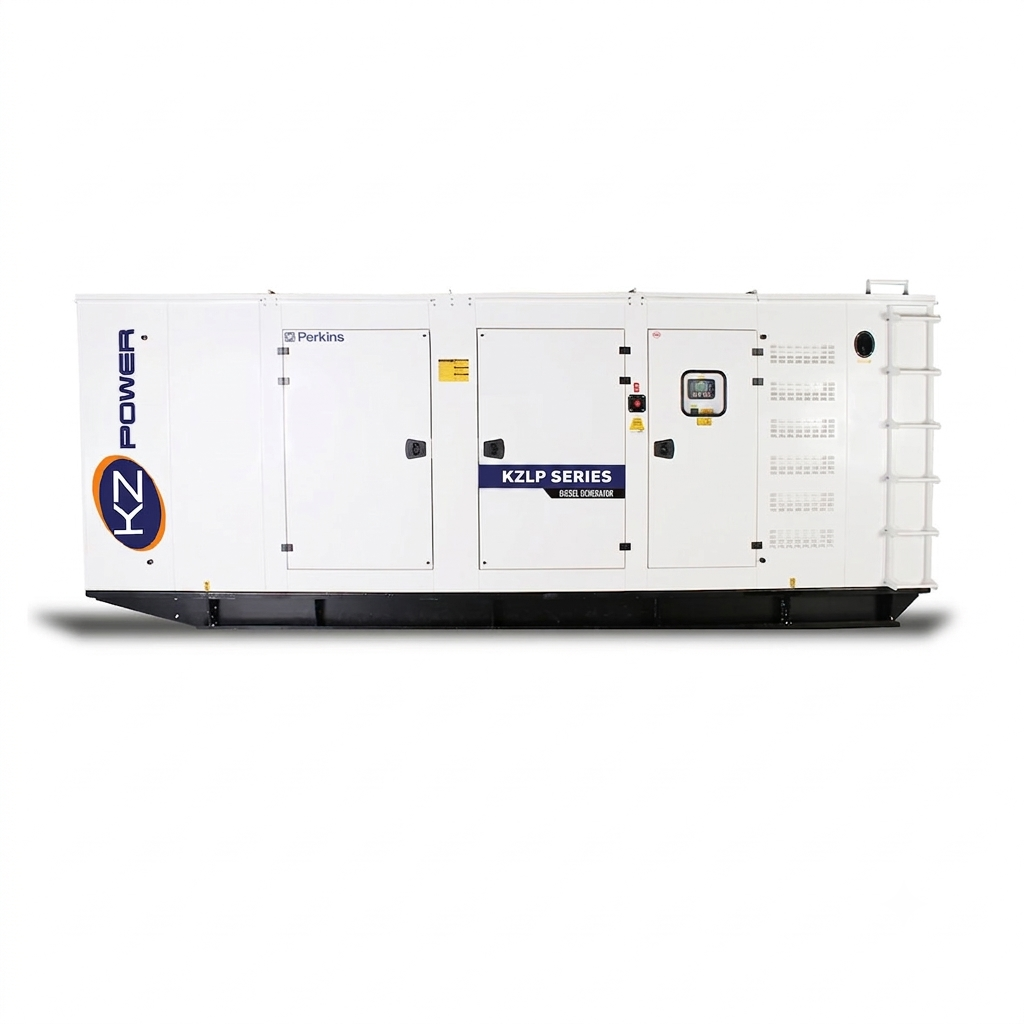

KZLP-G825

DIESEL GENERATOR SET

50 Hz - 1500 rpm

Standby kVA 825
Standby kW 660
Prime kVA 750
Prime kW 600
Rated Speed r.p.m 1500
Voltage V 230/400
Power Factor Cos Phi 0,8
Rated Output Power kW 754
Brand LISTER PETTER
Model LP625EG5
Model Series MARS MAX
Engine Type 4-cycle Diesel
Injection Type Injection Type
Aspiration Type Turbo Şarj & Air-Air Intercooler
Number of Cylinders 6
Bore and Stroke mm 170×185
Displacement L 25
Cooling Type Cooling Type
Compression Ratio 14.5:1
Fuel Consumption at Standby Load l/h 178
Fuel Consumption at 100% Prime Load l/h 163
Fuel Consumption at 75% Prime Load l/h 124
Fuel Consumption at 50% Prime Load l/h 84
Total Oil Capacity L 75
Total Coolant Capacity L 140
Emission Stage III
Governor Type Type Governor Type
Brand Gentech
Model M850
Output Voltage V 230/400
Frequency HZ 50
Automatic Voltage Regulation (AVR) ±% 1
Alternator Standby Power kVA 840
Alternator Prime/Continuous Power kVA 800
Power Factor Cosq 0,8
Number of Leads 12
Winding Pitch 2/3
Protection Class IP23/H
Excitation System Excitation System
AVR Model MX341B
Efficiency – at 0.8 PF / 75% Load % 94,5
Dimensions (Open Set)
LxWxH mm 4600x2100x2570
Weight kg 5200
Fuel Tank Capacity lt 1490
Dimensions (With Canopy / Enclosed)
LxWxH mm 5450x2100x3330
Weight kg 6720
Fuel Tank Capacity lt 1490
Stand By

825

Prime Power

750
