KZI-G33

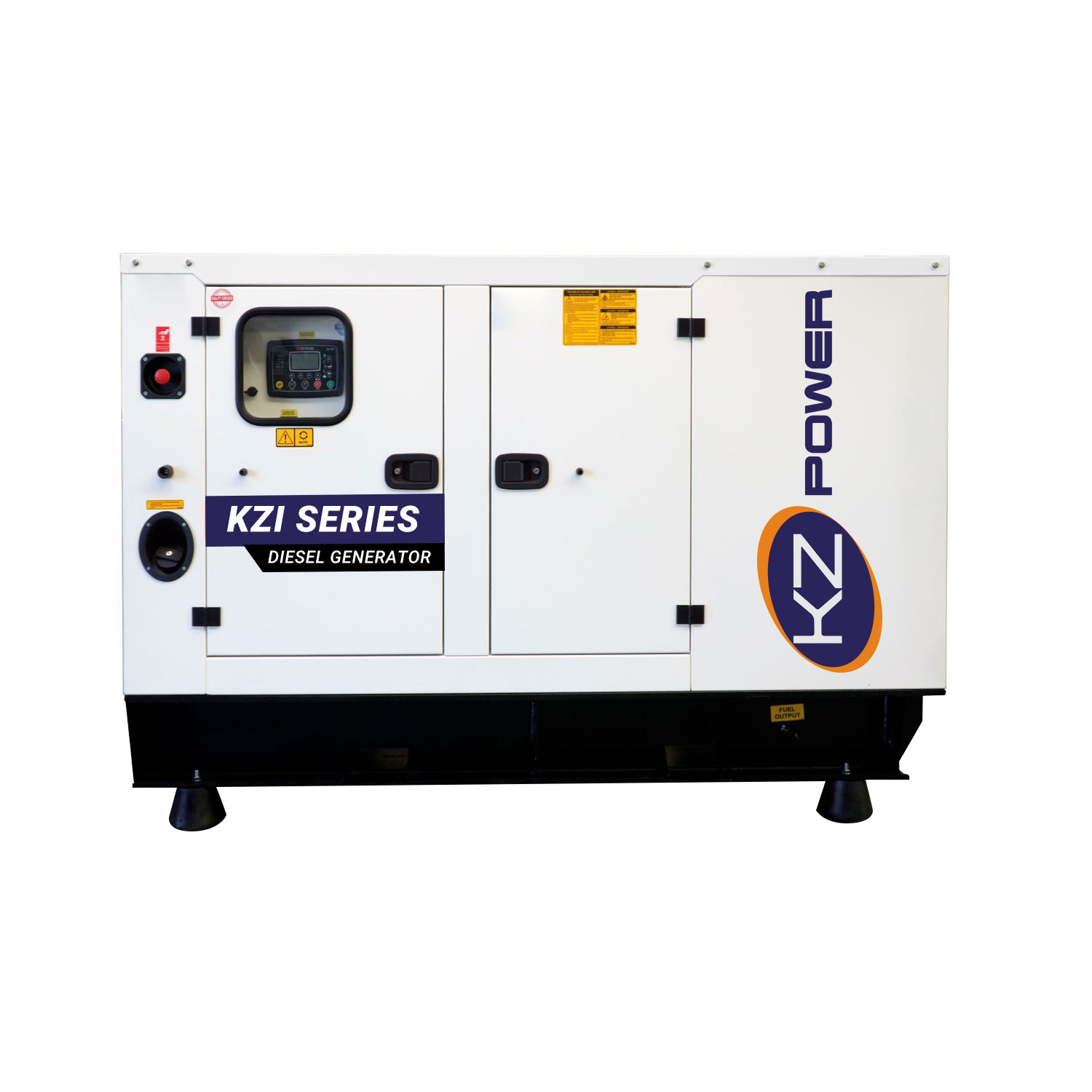

DIESEL GENERATOR SET

50 Hz - 1500 rpm

KZI-G33

Datasheet

Category: Brand:

Standby kVA 33
Standby kW 30
Prime kVA 26,4
Prime kW 24
Rated Speed r.p.m 1500
Power Factor Cos Phi 0,8
Brand   FPT-IVECO
Model   80313AM1P
Engine Type   4 Stroke – Diesel
Injection Type   Direct Injection
Aspiration Type   Naturally Aspirated
Number of cylinders and arrangement   3 – In Line
Bore&Stroke mm 104×115
Displacement L 2,9
Cooling System   Water Cooled
Compression Ratio   17:01
Fuel Consumption Standby l/h 6,9
Fuel Consumption 100% PRP l/h 6
Fuel Consumption 75 % PRP l/h 4,8
Fuel Consumption 50 % PRP l/h 3,2
Total oil capacity including tubes,filters L 8,8
Total coolant capacity L 9
Governor  Type Mechanical
Manufacturer   Gentech / Leroy Somer / Stamford
LxWxH mm 1750x900x1400
Weight kg
Fuel Tank lt 140
LxWxH mm 2225x950x1640
Weight kg
Fuel Tank lt 140
Stand By

33

Prime Power

26,4
