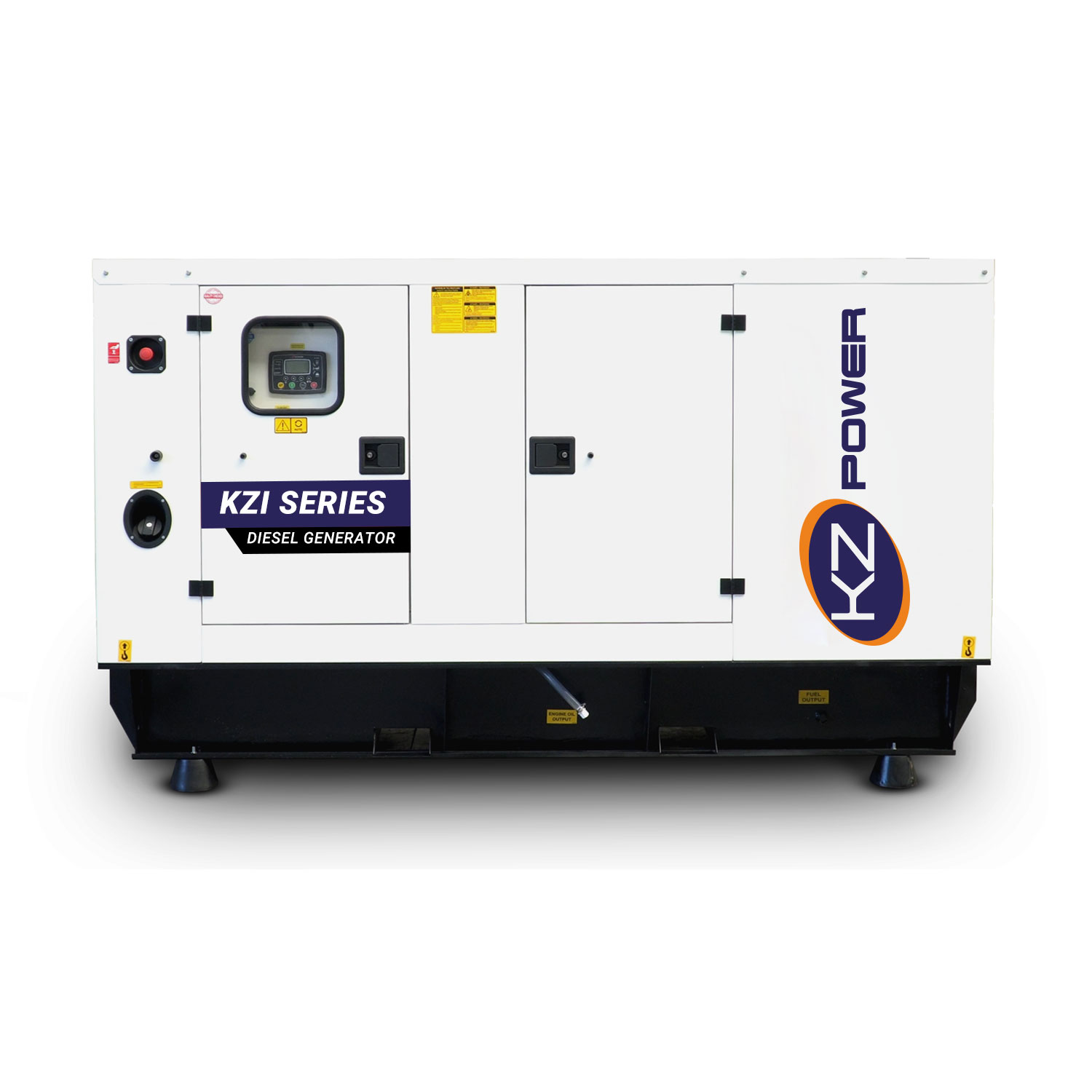

KZI-G110

DIESEL GENERATOR SET

50 Hz - 1500 rpm

KZI-G110

Datasheet

Category: Brand:

Standby kVA 110
Standby kW 100
Prime kVA 88
Prime kW 80
Rated Speed r.p.m 1500
Power Factor Cos Phi 0,8
Brand   FPT-IVECO
Model   NEF45TM2A
Engine Type   4 Stroke – Diesel
Injection Type   Direct Injection
Aspiration Type   Turbo Charge
Number of cylinders and arrangement   4 – In Line
Bore&Stroke mm 104×132
Displacement L 4,5
Cooling System   Water Cooled
Compression Ratio   17,5 : 1
Fuel Consumption Standby l/h 24,4
Fuel Consumption 100% PRP l/h 22
Fuel Consumption 75 % PRP l/h 16,2
Fuel Consumption 50 % PRP l/h 11
Total oil capacity including tubes,filters L 12,8
Total coolant capacity L 10
Governor  Type Mechanical
Manufacturer   Gentech / Leroy Somer / Stamford
LxWxH mm 2460x1100x1700
Weight kg
Fuel Tank lt 300
LxWxH mm 2980x1100x2000
Weight kg
Fuel Tank lt 300
Stand By

110

Prime Power

88
