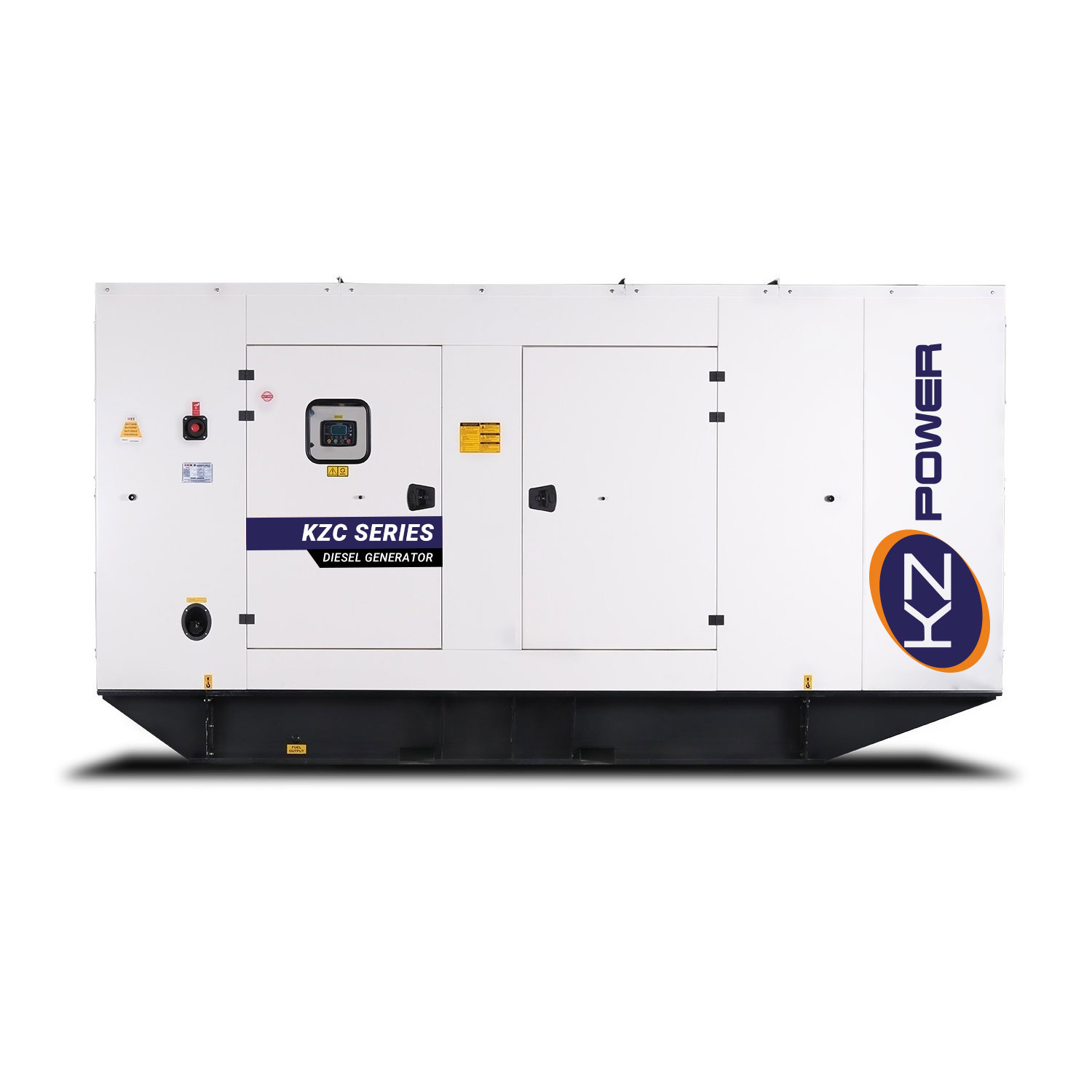

KZC-G27

DIESEL GENERATOR SET

50 Hz - 1500 rpm

Standby kVA 27
Standby kW 21,6
Prime kVA 25
Prime kW 20
Rated Speed r.p.m 1500
Power Factor Cos Phi 0,8
Brand   CUMMINS
Model   X2.5G2
Engine Type   4 Stroke – Diesel
Injection Type   Direct Injection
Aspiration Type   Naturally Aspirated
Number of cylinders and arrangement   3 In line
Bore&Stroke mm 91,4×127
Displacement L 2,5
Cooling System   Water Cooling
Compression Ratio
Fuel Consumption Standby l/h 6,5
Fuel Consumption 100% PRP l/h 6
Fuel Consumption 75 % PRP l/h 4,8
Fuel Consumption 50 % PRP l/h 3,5
Total oil capacity including tubes,filters L 6,5
Total coolant capacity L 5,5
Governor  Type Electronic
Manufacturer   Gentech / Leroy Somer / Stamford
LxWxH mm 1770x850x1440
Weight kg 950
Fuel Tank lt 135
LxWxH mm 2225x950x1660
Weight kg 1010
Fuel Tank lt 135
Stand By

27

Prime Power

25
